DIN VDE 0812 Flexible Control Cable Overall Diameter LiYCY PVC Copper Braid

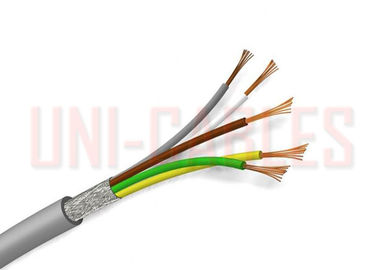

: Large Image : DIN VDE 0812 Flexible Control Cable Overall Diameter LiYCY PVC Copper Braid

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	LiYCY PVC

Payment & Shipping Terms:

Minimum Order Quantity:	2000 Meters
Price:	Depends on Quantity
Packaging Details:	100 meters per roll, or 1000 meters per reel
Supply Ability:	120000 per Week

Contact Now

Detailed Product Description

Voltage Rating:	0.14mm²: 350V Above 0.14mm²: 500V	Test Voltage:	0.14mm²: 800V Above 0.14mm²: 1200V
Temperature Rating:	Fixed: -40°C To +80°C Flexed: -5°C To +50°C	Minimum Bending Radius:	Flexed: 10 X Overall Diameter
Sheath Colour:	Sheath Colour
Highlight:	flexible power cable , oil resistant cable

DIN VDE 0812 Standard Flexible Control Cable Type LiYCY Copper Braid Cable

DIN VDE 0812 Flexible Control Cable Overall Diameter LiYCY PVC Copper Braid

APPLICATION

To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.

CABLE STANDARDS

Generally to DIN VDE 0812, BS EN/IEC 60332-1-2

DIN VDE 0812 Flexible Control Cable Overall Diameter LiYCY PVC Copper Braid

DIMENSIONS

UNI-Cables PART NO.	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	CONDUCTOR CONSTRUCTION		CONDUCTOR LOOP RESISTANCE	OVERALL DIAMETER	NOMINAL WEIGHT
UNI-Cables PART NO.	NO. OF CORES	mm²	No. of Strands	Strand Diameter mm	ohms/km	mm	kg/km
UNILiYCY100025	1	0.25	14	0.16	75.5	4	14
UNILiYCY10050	1	0.5	16	0.21	37.8	3.3	20
UNILiYCY10075	1	0.75	24	0.21	25.3	3.5	24
UNILiYCY10010	1	1	32	0.21	19.5	3.9	29
UNILiYCY200014	2	0.14	18	0.1	138	3.7	21
UNILiYCY200025	2	0.25	14	0.16	75.5	4.3	20
UNILiYCY200034	2	0.34	19	0.16	57.7	4.7	33
UNILiYCY20050	2	0.5	16	0.21	37.8	5.2	42
UNILiYCY20075	2	0.75	24	0.21	25.3	5.8	50
UNILiYCY20010	2	1	32	0.21	19.5	6.3	74
UNILiYCY20015	2	1.5	29	0.25	13.3	7.1	86
UNILiYCY300014	3	0.14	18	0.1	138	3.9	25
UNILiYCY300025	3	0.25	14	0.16	75.5	4.5	35
UNILiYCY300034	3	0.34	19	0.16	57.7	4.9	41
UNILiYCY30050	3	0.5	16	0.21	37.8	5.7	55
UNILiYCY30075	3	0.75	24	0.21	25.3	6.3	71
UNILiYCY30010	3	1	32	0.21	19.5	6.8	89
UNILiYCY30015	3	1.5	29	0.25	13.3	7.5	107
UNILiYCY400014	4	0.14	18	0.1	138	4.1	29
UNILiYCY400025	4	0.25	14	0.16	75.5	4.8	44
UNILiYCY400034	4	0.34	19	0.16	57.7	5.5	48
UNILiYCY40050	4	0.5	16	0.21	37.8	6.3	68
UNILiYCY40075	4	0.75	24	0.21	25.3	7	78
UNILiYCY40010	4	1	32	0.21	19.5	7.4	107
UNILiYCY40015	4	1.5	29	0.25	13.3	8.1	129
UNILiYCY500014	5	0.14	18	0.1	138	4.6	35
UNILiYCY500025	5	0.25	14	0.16	75.5	5.2	50
UNILiYCY500034	5	0.34	19	0.16	57.7	6.2	58
UNILiYCY50050	5	0.5	16	0.21	37.8	7	82
UNILiYCY50075	5	0.75	24	0.21	25.3	7.6	100
UNILiYCY50010	5	1	32	0.21	19.5	8	132
UNILiYCY50015	5	1.5	29	0.25	13.3	8.8	150
UNILiYCY600014	6	0.14	18	0.1	138	4.9	38
UNILiYCY600025	6	0.25	14	0.16	75.5	5.8	58
UNILiYCY60050	6	0.5	16	0.21	37.8	7.3	104
UNILiYCY700014	7	0.14	18	0.1	138	5	41
UNILiYCY700025	7	0.25	14	0.16	75.5	5.8	60
UNILiYCY700034	7	0.34	19	0.16	57.7	6.7	70
UNILiYCY70050	7	0.5	16	0.21	37.8	7.6	109
UNILiYCY70075	7	0.75	24	0.21	25.3	8.2	131
UNILiYCY70010	7	1	32	0.21	19.5	8.6	158
UNILiYCY70015	7	1.5	29	0.25	13.3	9.5	192
UNILiYCY800014	8	0.14	18	0.1	138	5	45
UNILiYCY800025	8	0.25	14	0.16	75.5	6.4	67
UNILiYCY800034	8	0.34	19	0.16	57.7	7.3	93
UNILiYCY80050	8	0.5	16	0.21	37.8	8.1	123
UNILiYCY80075	8	0.75	24	0.21	25.3	8.7	151
UNILiYCY80015	8	1.5	29	0.25	13.3	10.6	219
UNILiYCY1000014	10	0.14	18	0.1	138	5.5	49
UNILiYCY1000025	10	0.25	14	0.16	75.5	7.5	81
UNILiYCY1000034	10	0.34	19	0.16	57.7	8.3	110
UNILiYCY100050	10	0.5	16	0.21	37.8	9.3	135
UNILiYCY1200014	12	0.14	18	0.1	138	6.3	61
UNILiYCY1200024	12	0.25	14	0.16	75.5	7.7	91
UNILiYCY1200034	12	0.34	19	0.16	57.7	8.5	120
UNILiYCY120050	12	0.5	16	0.21	37.8	9.6	160
UNILiYCY1200075	12	0.75	24	0.21	25.3	10.8	218
UNILiYCY12010	12	1	32	0.21	19.5	11.4	254
UNILiYCY1400014	14	0.14	18	0.1	138	6.7	67
UNILiYCY1400025	14	0.25	14	0.16	75.5	8	116
UNILiYCY1600014	16	0.14	18	0.1	138	7	81
UNILiYCY1600025	16	0.25	14	0.16	75.5	8.4	133
UNILiYCY1600034	16	0.34	19	0.16	57.7	9.4	147
UNILiYCY160050	16	0.5	16	0.21	37.8	10.9	210
UNILiYCY1800014	18	0.14	18	0.1	138	7.3	92
UNILiYCY1800025	18	0.25	14	0.16	75.5	8.8	137
UNILiYCY1800034	18	0.34	19	0.16	57.7	10.2	172
UNILiYCY180050	18	0.5	16	0.21	37.8	11	210
UNILiYCY180075	18	0.75	24	0.21	25.3	12.5	300
UNILiYCY2000014	20	0.14	18	0.1	138	7.6	104
UNILiYCY200050	20	0.5	16	0.21	37.8	12	270
UNILiYCY2400014	24	0.14	18	0.1	138	8.3	118
UNILiYCY2400025	24	0.25	14	0.16	75.5	10.5	185
UNILiYCY2400034	24	0.34	19	0.16	57.7	11.7	229
UNILiYCY240050	24	0.5	16	0.21	37.8	13.2	320
UNILiYCY2500014	25	0.14	18	0.1	138	8.5	120
UNILiYCY2500025	25	0.25	14	0.16	75.5	10.7	190
UNILiYCY2700014	27	0.14	18	0.1	138	8.5	123
UNILiYCY2700025	27	0.25	14	0.16	75.5	10.9	200
UNILiYCY3000025	30	0.25	14	0.16	75.5	11	214
UNILiYCY3200025	32	0.25	14	0.16	75.5	11.4	227
UNILiYCY320050	32	0.5	16	0.21	37.8	14.5	360
UNILiYCY3600014	36	0.14	18	0.1	138	9.3	157
UNILiYCY3600025	36	0.25	14	0.16	75.5	11.8	250
UNILiYCY40025	40	0.25	14	0.16	75.5	12.2	289
UNILiYCY5000014	50	0.14	18	0.1	138	12	320
UNILiYCY540014	52	0.14	18	0.1	138	11.1	212
UNILiYCY5200025	52	0.25	14	0.16	75.5	13.6	340
